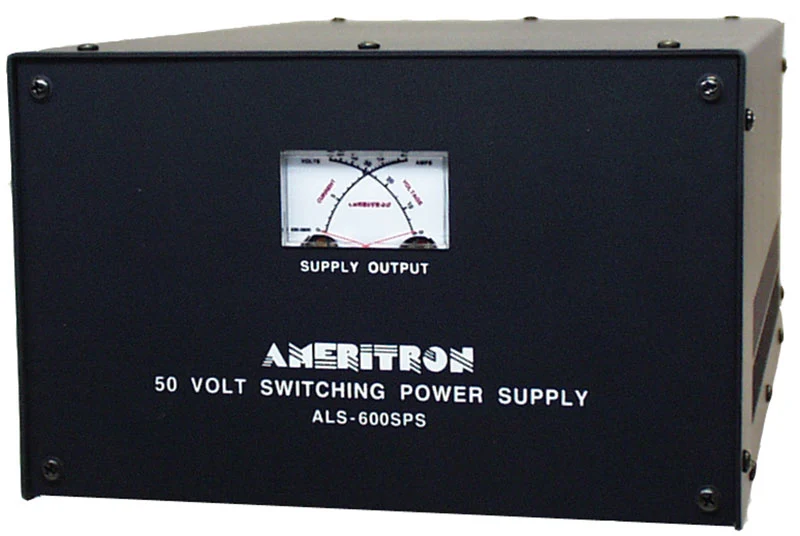

ALS-600SPS, SWITCHING POWER SUPPLY for 600 Watt ALS Amplifiers and other solid state Amplifiers

50 VDC Switching Power Supply for Ameritron 600 Watt ALS and other solid state amplifiers

The ALS-600SPS is a light weight switching power supply to use with the ALS-600 amplifier. The switching supply weighs 3 times less than the choke type power supply. The specially designed switching and filter circuit makes this power supply hash free.

The ALS-600SPS has a terminal strip where the AC voltage can be 120 or 240 50/60 Hz. The power supply will safely operate from 90-130 VAC in the 120 VAC position and 185-260 in the 240 VAC position.

• Line Input: 120/240 VAC 50/60 Hz
• Output: 50 Vdc 25 Amps +- 14 Vdc 1 Amp.
• Metering: Cross Needle Volts / Amp.
• Output Cable: Beau multi-connector with 6 foot cord to mate the ALS-600 amplifier
• AC line: NEMA 5-15P connector
• Dimensions: 9" x 6" x 14"
• Operating Weight: 10 lbs.

ALS-600 Variants
Base Model w/ 50V Power Supply - ALS-600	Base Model w/ Switching Power Supply - ALS-600S
220V Export Model w/ 50V Power Supply - ALS-600X	220V Export Model w/ Switching Power Supply - ALS-600SX
110V Export Model w/ 50V Power Supply - ALS-600Y	Switching Power Supply Only (No Amp) - ALS-600SPS

Product Manuals

Download Product Manual
